Prerequisites, permissions, network requirements, and step-by-step instructions for connecting SAP HANA to Prizm.
This page covers everything you need to connect SAP HANA (on-premises or SAP HANA Cloud) to Prizm: prerequisites, the permissions Prizm needs, network requirements, and the connection wizard.
Host and SQL port. Typically 39015 on-premises and 443 on SAP HANA Cloud
Database user for Prizm
Yes
A dedicated technical user is recommended
Prizm platform storage
Yes
Configured in your organization’s platform settings. Used for exceptions and for large comparison results
Spark cluster
Recommended
Needed to run comparison metrics at scale, especially segment metrics with many groups
Schema Owner filter
No
Optional connection field that limits discovery to schemas owned by a given user
SAP HANA is schema-scoped. There is no separate “database” or catalog layer to choose, as there is for Snowflake. Prizm names assets with slashes: SCHEMA/TABLE for tables and SCHEMA/TABLE/COLUMN for columns.
Give the Prizm user least-privilege access to the objects in scope. Prizm reads catalog views and runs SELECT statements (including metric queries) on the tables you monitor.
SELECT on SYS.CONSTRAINTS, SYS.REFERENTIAL_CONSTRAINTS, and SYS.INDEXES
Primary key, foreign key, and structural metadata
SELECT on SYS.M_TABLES and SYS.M_TABLE_STATISTICS (where available)
Row counts and statistics for observability
If your SAP HANA deployment provides a catalog-read or monitoring-style role, you can grant that instead of the individual SELECT privileges above. Otherwise grant SELECT on the views listed, plus any tenant-specific statistics views your version exposes.
The following creates a dedicated user with role-based catalog access. Adjust it to your security policy and replace <schema> with each schema you plan to include.
-- Create the Prizm connection userCREATE USER PRIZM_SVC PASSWORD "<password>" NO FORCE_FIRST_PASSWORD_CHANGE;-- Catalog read access to the SYS.* system viewsGRANT CATALOG READ TO PRIZM_SVC;-- Read access to the monitoring (M_*) viewsGRANT MONITORING TO PRIZM_SVC;-- Read access to the data in each schema in scopeGRANT SELECT ON SCHEMA <schema> TO PRIZM_SVC;
Prizm is read-only on SAP HANA. None of these grants allow Prizm to change data or objects.
Navigate to Source and click the + icon next to the source list. Search for SAP HANA and select it from the connector grid.
2

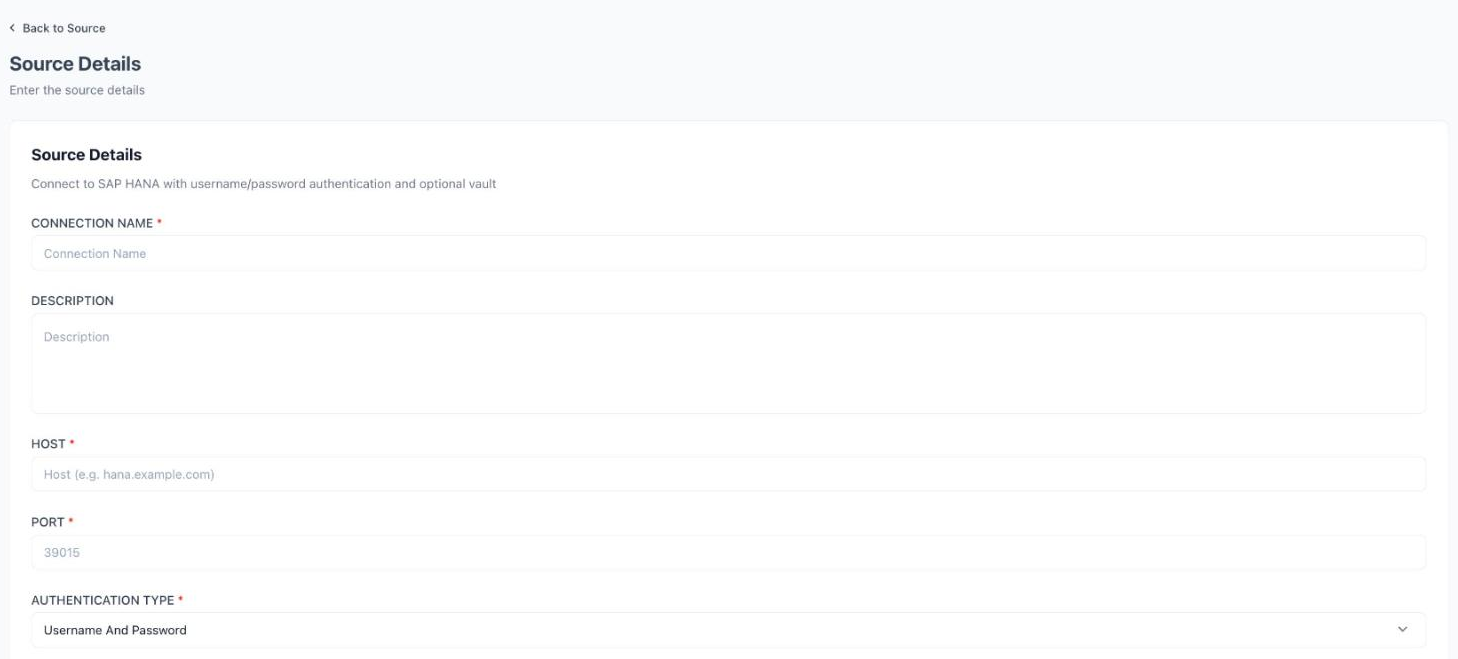

Enter source details
Field
Description
Connection Name
A label for this connection (for example, saphana-prod)
Description
Optional notes about what this connection covers
Host
Hostname of the SAP HANA server, for example hana.example.com or a SAP HANA Cloud host such as <instance>.hana.<region>.hanacloud.ondemand.com. The host can’t be changed after you save
Port
SQL port of the instance. Defaults to 39015. Self-managed systems typically use 3<instance>15; SAP HANA Cloud uses 443
Authentication Type
Username And Password
Schema Owner
Optional. Limits discovery to schemas owned by this user (SYS.SCHEMAS.SCHEMA_OWNER). This is a schema-owner filter, not a database name
SAP HANA source details
3

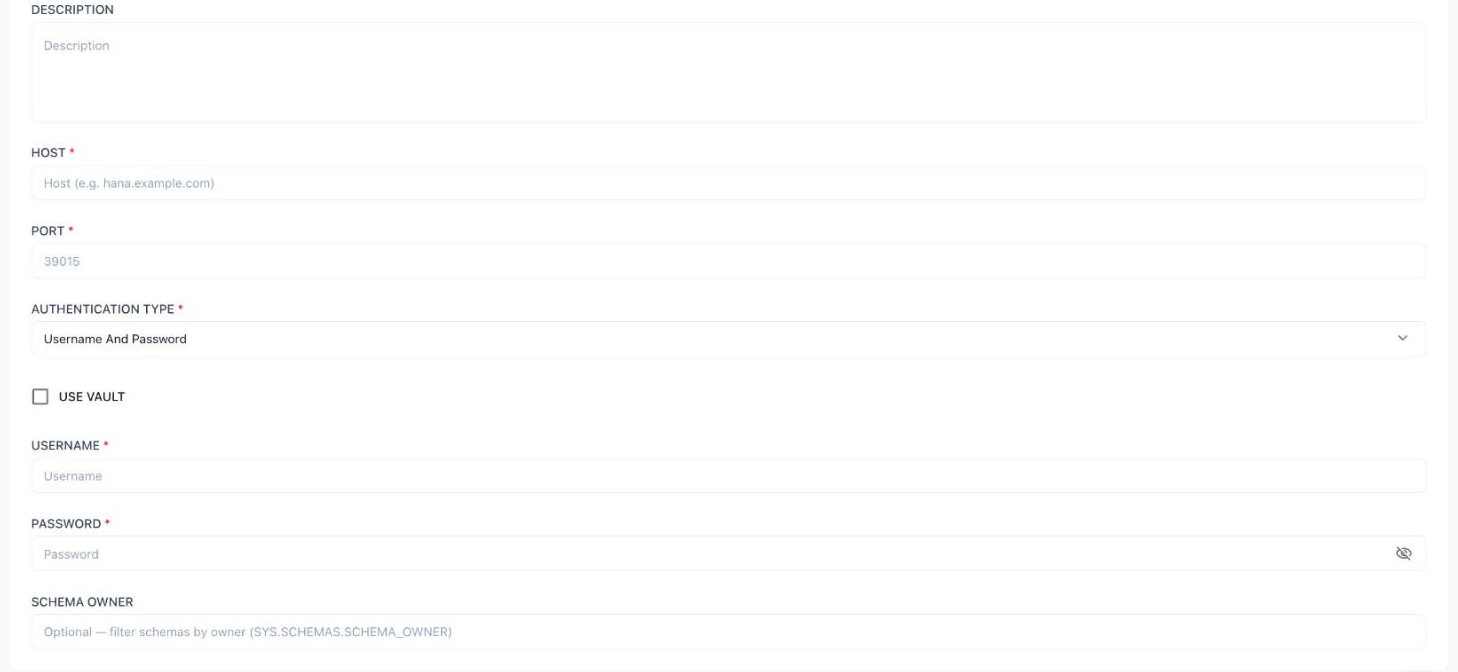

Provide credentials
Toggle Use Vault to retrieve credentials from a vault instead of entering them directly. Prizm supports HashiCorp Vault, Azure Key Vault, and AWS Secrets Manager.
Username, password and the optional Schema Owner filter
Username & Password (default)
Use Vault
Field
Description
Username
The SAP HANA user created in Prerequisites
Password
The user’s password, stored encrypted
Field
Description
Select Vault
Choose from the vault instances already configured for your organization
Key
The key or path within that vault where the SAP HANA credential is stored
Credentials retrieved this way are not entered into the connector form.
4
Validate the connection
Click Validate (or Test connection). Prizm runs a simple query (SELECT 1 FROM DUMMY) to confirm it can connect. If you set a Schema Owner, Prizm also checks that at least one non-system schema exists for that owner.
Validation must succeed before you can click Next. If it fails, check the host, port, credentials, firewall rules, and Schema Owner value.
5
Choose what to profile
Click Next to open the source configuration step. Scope is schema-first, so there is no database selection.
Section
Description
Include
Schemas, and tables or views, to profile. Wildcards are supported where configured
Exclude
Schemas, and tables or views, to leave out of profiling
Additional configuration
Storage is set at the organization level and covers features such as exceptions and comparison results. Turn on Override default storage to override the schema and directory for this source
6
Save
Complete the configuration. The source then appears in the Source list, where the Valid column shows a green check for a working connection. Its assets appear in the catalog once the first run completes. Filter the Asset page by SAP HANA to see them.
Operational. Discovers tables, views, and columns.
Profile, Structural, and Business. Run these as needed once the assets exist.
When they complete, the catalog shows Schema → Table/View → Column. Metrics, alerts, and the schema change timeline fill in for the assets in scope, and comparison metrics run when a Spark cluster is configured.
Comparison and reconciliation metrics can run on Spark and read SAP HANA over JDBC. Make sure your Spark workers can reach the SAP HANA host and port, and that the credentials work from there. The connection uses the SAP JDBC driver in this form:
Common questions about credentials, scoping, and permissions.
Troubleshooting
Diagnose connection failures, permission errors, and timeouts.
