How anomaly detection works (Volume as an example)
Prizm monitors volume by building a statistical baseline from historical runs and comparing each new value against it. There are no thresholds to manually configure — the system learns the normal range for each asset and flags deviations automatically.
Step 1 — Baseline construction. Over the first several runs, Prizm observes the row count and data size of the asset and establishes an expected range. The baseline is represented as a distribution — the grey bell curve on the left side of the Anomaly Distribution chart on the metric overview page.
Step 2 — Deviation scoring. Each new run produces a value that is compared against the baseline distribution. Prizm computes a drift score — how far the new value sits from the centre of the expected range, expressed in standard deviations. A drift of +3.68 (as shown in the screenshot) means the current value is 3.68 standard deviations above the baseline mean.
Step 3 — Outlier classification. Values that fall outside the expected range are classified as outliers. The Outliers % figure (36.36% in the screenshot) represents the proportion of recent runs that produced an anomalous value. A high outlier percentage means the asset has been behaving abnormally for a sustained period, not just a one-off spike.
Step 4 — Alert prioritisation. Prizm assigns a priority to each anomaly based on the magnitude of the drift and the direction of the change. The four priority levels are:
Reading the anomaly distribution chart

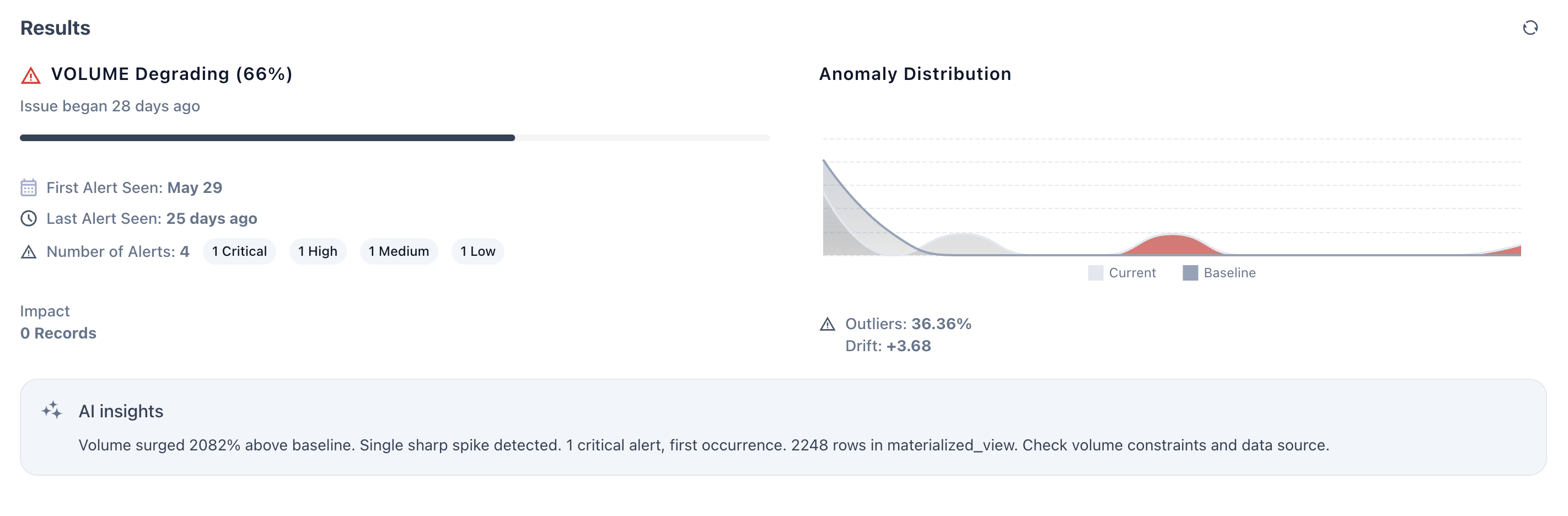

The Anomaly Distribution panel on the Overview tab shows two overlapping curves:
- Baseline (grey) — the expected distribution of volume values learned from historical runs. A tight, tall curve means the asset has historically been very consistent. A wide, flat curve means the asset naturally varies a lot.
- Current (red/orange) — the distribution of recent run values. When this curve shifts right of the baseline, volume is higher than expected. When it shifts left, volume is lower than expected. The further apart the two curves are, the higher the drift score. The example in the screenshot shows the current distribution shifted far to the right of the baseline — consistent with the +3.68 drift score and the 2,082% spike recorded on May 29.
Reading the metric timeline
The Timeline tab combines a line chart and a run history table into a single view for diagnosing volume anomalies over time.

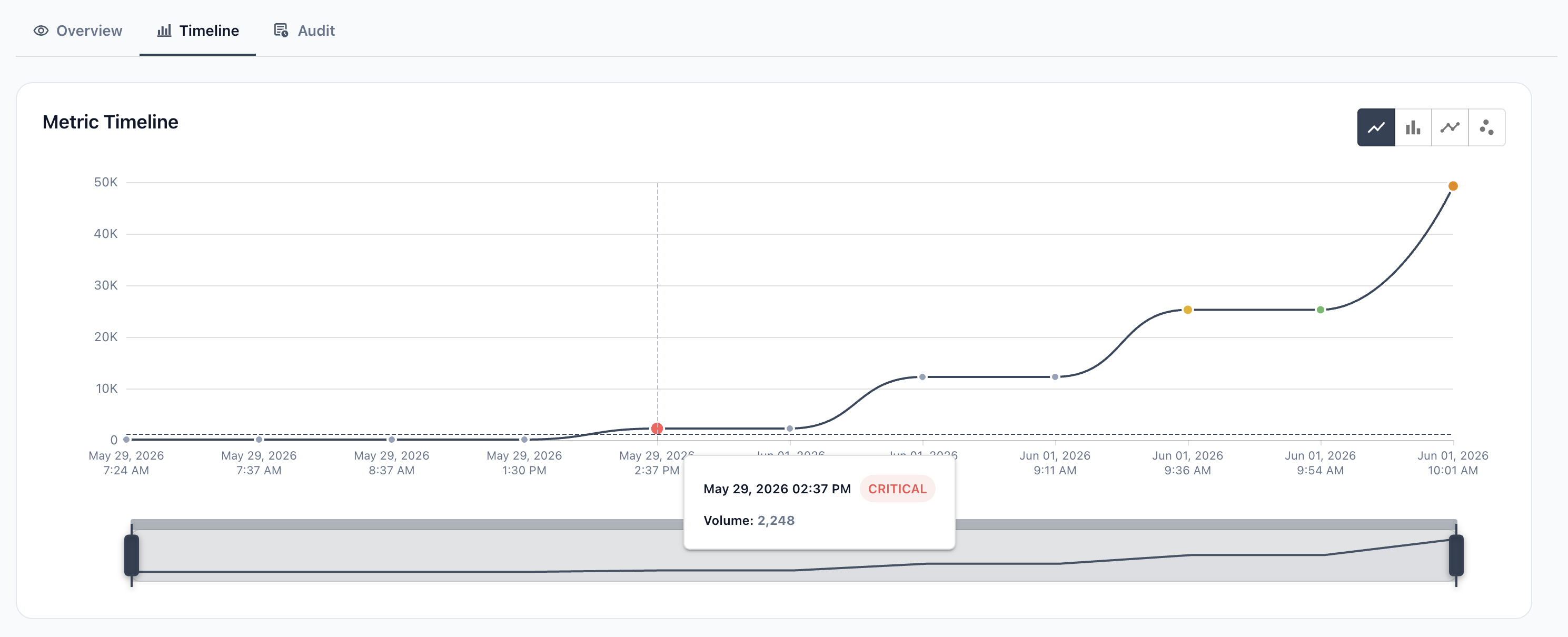

Line chart (top) — plots the actual row count for each run. The x-axis is time; the y-axis is row count. The red dot marks the first alert — in this case, May 29 at 2:37 PM when volume jumped from 103 to 2,248. The line then continues climbing through subsequent runs up to 49,256 by June 1 at 10:01 AM. The minimap below the chart lets you zoom in on any time window.

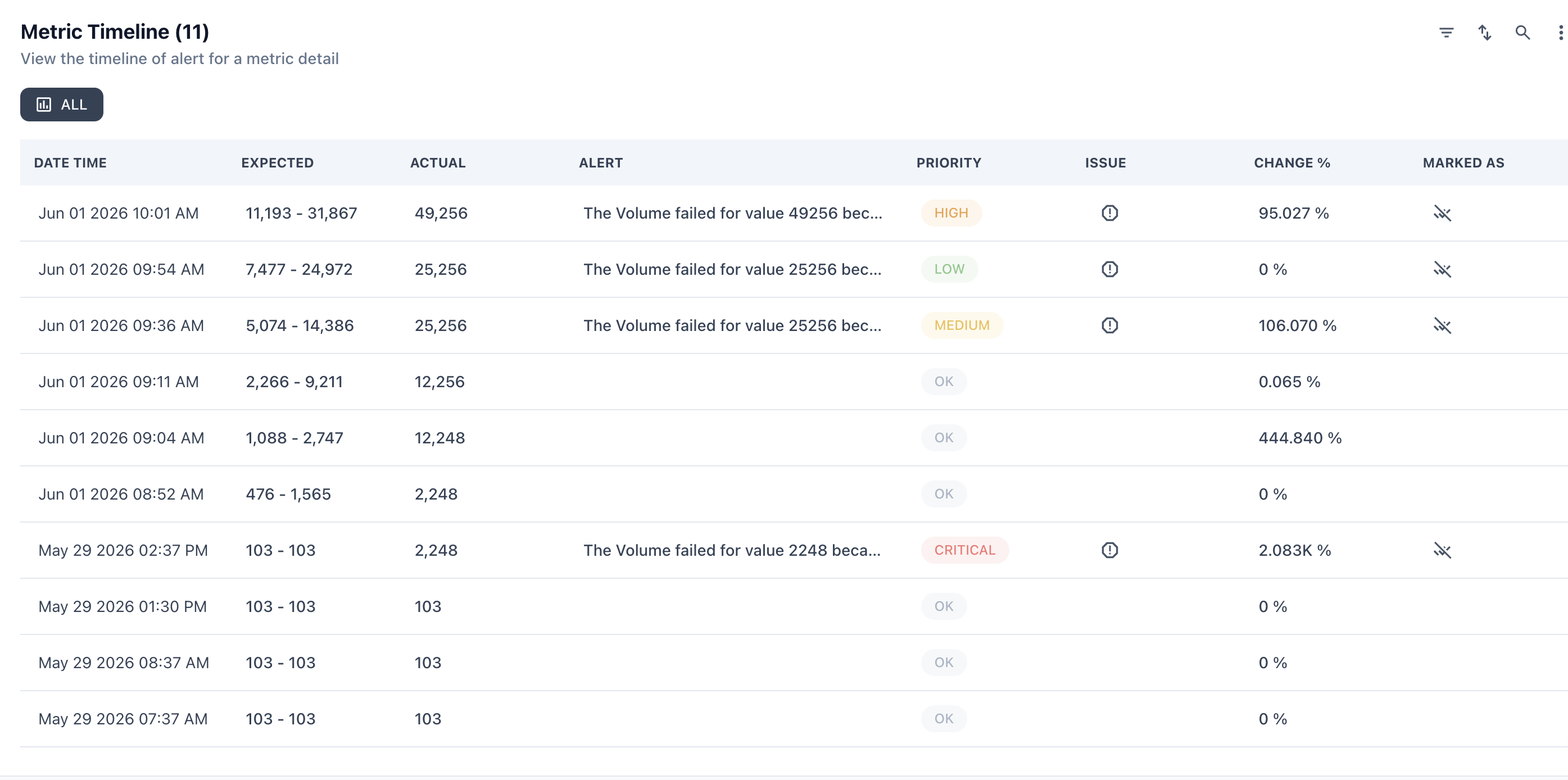

Run history table (bottom) — lists every run with the following columns:
Rows marked OK fell within the expected range — no alert was raised. Rows with a Critical, High, Medium, or Low badge breached the baseline. The Change % column is the fastest way to spot the outlier run: in this example, the May 29 2:37 PM run shows +2,083K% — the moment the volume first spiked.
The degrading state
When the Overview tab shows VOLUME Degrading (66%), it means:
- The metric has been in an anomalous state for a sustained period (28 days in the example)
- The degradation percentage (66%) is the proportion of recent runs that produced an anomalous value — it combines outlier rate with drift magnitude to give a single health signal
- The first alert date (May 29) marks when the anomaly began, and the last alert date (25 days ago) marks the most recent breach This state persists until the volume returns to the expected baseline range and remains stable for enough consecutive clean runs for Prizm to re-establish a healthy baseline.
Volume metrics are most effective when combined with Freshness. A row count within range but a stale Last Updated timestamp means data arrived on time historically but has not been refreshed recently — a subtler failure pattern that volume alone would miss.
