Metric Results

Every metric in Prizm has a Results panel that tells you not just what happened, but how abnormal it is, how long it has been happening, and how urgent it is to act. This page explains how the two key visuals — the Anomaly Distribution chart and the health state badge — are calculated, and what every number means.

The anomaly distribution chart

The chart in the top-right of the Results panel shows two overlapping bell curves. Together they answer a single question: how far is what the metric is seeing today from what it normally sees?

          Baseline            Current
             │                   │
        ╭────╮               ╭───╮
       ╭╯    ╰╮           ╭──╯   ╰──╮
──────╯        ╰──────────╯          ╰────── (red tail)

The baseline curve (grey)

The baseline is built from historical run values — by default the last 4 weeks of observations for the metric on that asset. Prizm fits a statistical distribution to those values and stores:

μ (mean) — the centre of the expected range
σ (standard deviation) — how wide the normal spread is A tall, narrow baseline curve means the metric has been very consistent historically. A wide, flat curve means the asset naturally varies a lot. The shape of the baseline is what makes anomaly detection self-tuning — an asset that normally swings by ±30% will not alert on a 20% change; an asset that is rock-steady will alert on a 5% change.

The current curve (dark/coloured)

The current curve represents the distribution of values from recent runs — typically the last 24–48 hours. Each run produces one data point; enough recent points form a distribution that can be overlaid on the baseline. The relative position of the two curves tells the story immediately:

Curve position	What it means
Current overlaps baseline	Metric is behaving normally
Current shifted right of baseline	Values are higher than expected (e.g. volume spike, latency increase)
Current shifted left of baseline	Values are lower than expected (e.g. volume drop, freshness lag)
Current is flat/wide	High variability in recent runs — inconsistent behaviour
Red tail extending right	Extreme outliers pulling the distribution far from baseline

In the screenshot, the current curve is shifted right of the baseline with a visible red tail — consistent with the Freshness metric receiving values well above the expected range.

How drift is calculated

Drift is the distance between the centre of the current distribution and the centre of the baseline, measured in standard deviations (σ).

Drift = (current_mean − baseline_mean) ÷ baseline_σ

A drift of +2.4 (as shown in the screenshot) means the current values are sitting 2.4 standard deviations above the historical mean. A drift of −1.8 would mean values are 1.8 standard deviations below. The sign tells you direction:

Positive drift → values are higher than expected
Negative drift → values are lower than expected The magnitude tells you severity — this maps directly to the priority bands:

Drift magnitude	Priority band	Meaning
0 – 1σ	Low	Within expected statistical variation
1σ – 2σ	Medium	Moderate deviation — monitor for drift
2σ – 3σ	High	Significant anomaly — investigation recommended
≥ 3σ	Critical	Extreme deviation — immediate action required

How outlier % is calculated

Outliers % is the percentage of recent runs whose value fell outside the baseline’s expected range (beyond ±1σ by default, or a configurable threshold).

Outliers % = (number of outlier runs ÷ total recent runs) × 100

An outlier % of 18% (as in the screenshot) means roughly 1 in 5 recent runs produced a value outside the normal range. An outlier % of 36% means more than a third of recent runs were anomalous — the metric has been misbehaving consistently, not just occasionally. Outlier % and drift are complementary signals:

Drift	Outlier %	Interpretation
High	High	Sustained shift — the metric has moved to a new abnormal level
High	Low	Single spike — one extreme run, otherwise normal
Low	High	Noisy metric — many small deviations, no single large one
Low	Low	Healthy — metric is behaving as expected

The Freshness screenshot (drift +2.4, outliers 18%) is a single spike pattern — the drift is significant but only a minority of runs are outliers, suggesting a specific event rather than a persistent shift.

Health states

Every metric is assigned one of four health states based on its recent alert history. The state appears as the badge in the Results panel header — for example, “Freshness Degrading (72%)”. The state is not a simple pass/fail. It is calculated using a priority burden score that weights recent alerts more heavily than older ones, so the state reflects what is happening right now, not just what happened in the past.

Step 1 — Translate priority to points

Each alert run is assigned a point value based on the drift magnitude at the time of the alert:

Priority	Drift band	Points
Low	0 – 1σ	1 point
Medium	1 – 2σ	2 points
High	2 – 3σ	3 points
Critical	≥ 3σ	5 points

Step 2 — Apply recency weighting

Recent alerts carry more weight than older ones. Each alert’s points are multiplied by a recency factor:

When the alert occurred	Recency weight
Last run	× 1.0
Last 24 hours	× 0.7
Last 7 days	× 0.3

Step 3 — Compute priority burden

priority_burden = Σ (priority_points × recency_weight)

Example — Degrading state:

Last run: 2 Medium alerts → (2 × 2) × 1.0 = 4.0
Last 24h: 2 Medium alerts → (2 × 2) × 0.7 = 2.8
Total burden = 6.8 → Degrading Example — Critical state:
Last run: 10 Medium + 2 High alerts → (10×2 + 2×3) × 1.0 = 26.0
Total burden = 26 → Critical

Step 4 — Map burden to state

State	Burden threshold	What it means
Healthy	burden < 2	No meaningful anomaly activity. Metric is behaving within expected range.
Stable	2 ≤ burden < 5	Minor alert activity. Worth monitoring but no urgent action needed.
Degrading	5 ≤ burden < 10	Sustained anomaly activity. The metric has been consistently outside its normal range. Investigation is recommended.
Critical	burden ≥ 10	Severe or persistent anomaly. Immediate action required.

Step 5 — Persistence override rules

Burden alone does not always capture the full picture. Two override rules can force a state higher regardless of the burden score: Force to Degrading if:

Alerts fired in 2 or more consecutive runs (any priority), OR
High or Critical priority alerts repeat in consecutive runs Force to Critical if:
Any Critical priority alert in the last run, OR
Consecutive runs with High or Critical priority ≥ 3 in a row These rules ensure that a steady stream of moderate alerts — which might produce a moderate burden score — still escalates to Degrading, and that a recent Critical alert always results in a Critical state regardless of how clean prior runs were.

The percentage in the state badge

The percentage shown alongside the state — for example, “Freshness Degrading (72%)” — represents the overall anomaly burden score normalised to a 0–100% scale for the current observation window. A higher percentage means a heavier alert burden: more alerts, higher severity, or more recent occurrence.

When a trust score is not available for a metric (Score: No), Prizm shows the state as “Freshness Degrading (High priority activity)” instead of the percentage. This applies to all operational metrics, which do not contribute to trust scoring.

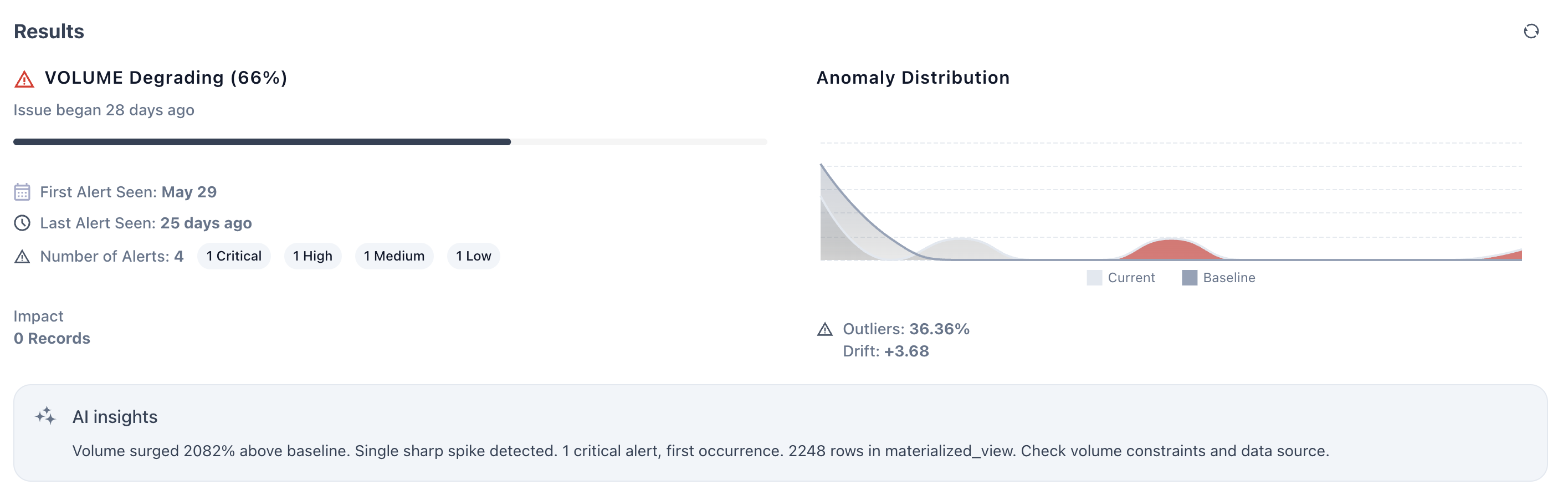

The Results panel at a glance

Field	What it shows	How it’s computed
State badge	Current health state + burden %	Priority burden score + persistence rules
Issue began N days ago	How long the metric has been in an anomalous state	Days since first alert in current issue window
First Alert Seen	Date of the first alert in the current issue	Earliest alert timestamp in the active issue
Last Alert Seen	How recently the last alert fired	Most recent alert timestamp
Number of Alerts	Total alerts broken down by priority	Count of alert runs by priority band
Impact — N Records	Estimated records affected by the anomaly	Sum of record counts from anomalous runs
Outliers %	% of recent runs outside the expected range	Outlier runs ÷ total recent runs × 100
Drift	Distance from baseline in standard deviations	(current mean − baseline mean) ÷ baseline σ

AI insights

The AI Insights block in the Results panel is generated by an LLM that receives the metric’s computed signals and produces a plain-language summary. It follows a structured output template:

Trend summary — what the metric has been doing over the observation window
Anomalies detected — what specific deviations occurred and when
Alerts summary — how many alerts fired and at what priority
Impact analysis — how many records or assets were affected
Focus areas — where to look to diagnose and resolve the issue The AI insight shown in the screenshot is a textbook example:

“The metric shows a significant volume drop over the last 2 days, deviating 35% below the 4-week baseline. Three alerts were triggered, impacting approximately 120K records. This pattern aligns with previous ingestion delays. Focus should be on upstream pipeline stability and late-arriving data.”

This maps directly to: trend (volume drop, 2 days) → deviation (35% below 4-week baseline) → alerts (3) → impact (120K records) → focus area (upstream pipeline, late-arriving data).

AI insights are generated the first time a user opens the metric detail page after an alert fires. They can be manually regenerated if the metric state changes significantly — for example, after a new Critical alert arrives or after the issue is resolved.

State transition lifecycle

A metric moves through states as its alert activity changes over time.

New data arrives
      │
      ▼
Compute drift & outlier %
      │
      ├─ No anomaly ──────────────────────────────► Healthy
      │
      ├─ Anomaly, low burden (< 2) ───────────────► Healthy
      │
      ├─ Anomaly, moderate burden (2–5) ──────────► Stable
      │
      ├─ Anomaly, persistent / burden 5–10 ───────► Degrading
      │
      └─ Critical alert OR burden ≥ 10 ───────────► Critical
                                │
                                ▼
                    Resolve upstream issue
                                │
                         Burden declines
                                │
                    Degrading → Stable → Healthy

A metric returns to Healthy only after enough consecutive clean runs rebuild the burden score below 2. This prevents a single clean run from prematurely resetting the state after a prolonged anomaly period.

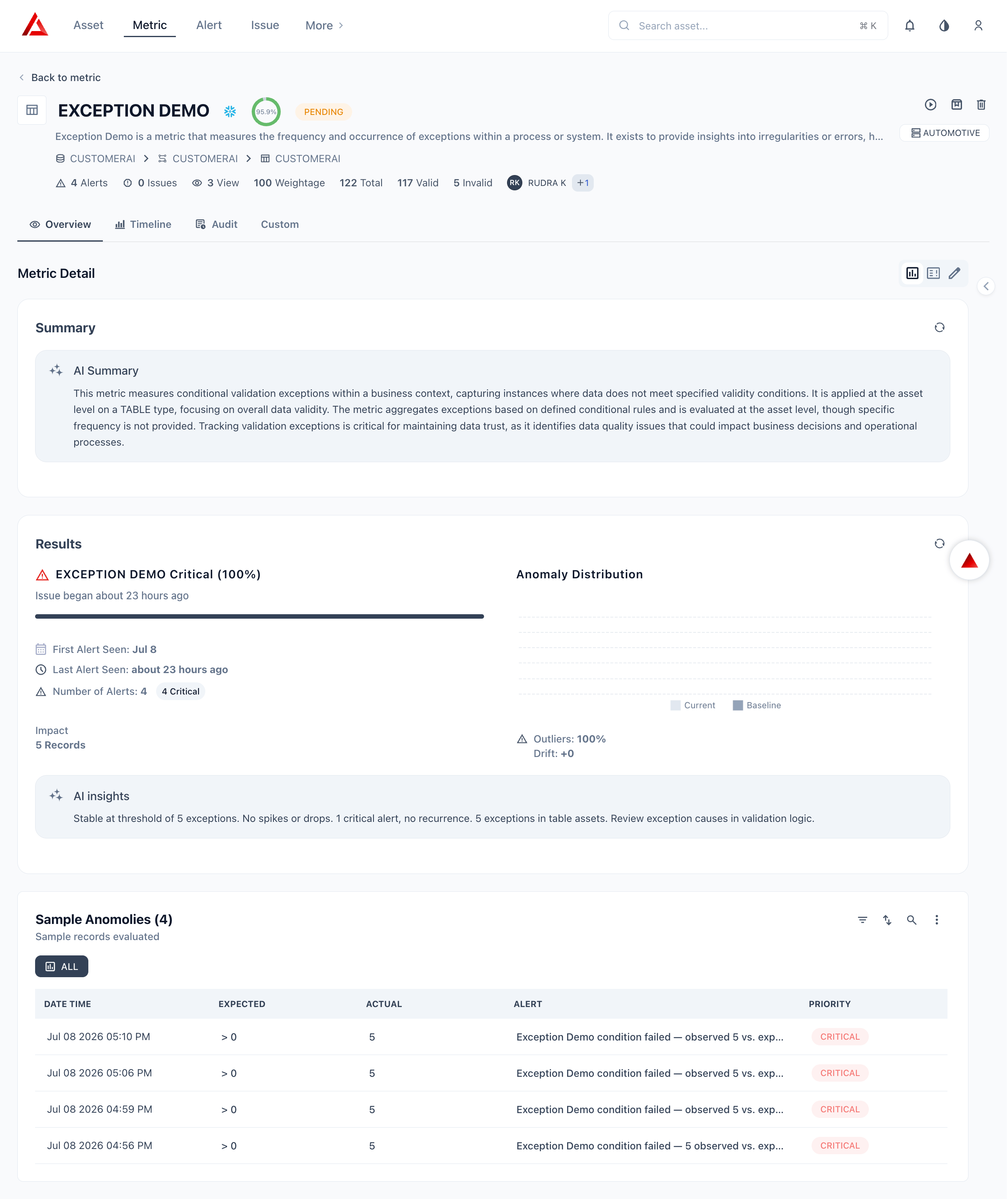

Measure details page

Click a metric name from the Metric list to open its details page. The page is organized into a persistent header and three tabs: Overview, Timeline, and Audit.

Tab	What you see
Overview	AI Summary, Results (alert details, Anomaly Distribution chart, AI insights), and Sample Anomalies table
Timeline	Historical trend chart of invalid record counts over time
Audit	Full change log — every create, update, and configuration change with user and timestamp

Overview
Timeline
Audit

The Overview tab contains two sections: Summary and Results.

Summary

The Summary section shows an AI Summary — a Prizm-generated plain-language description of what the metric measures, why it matters, and the business context it operates in. The summary refreshes each time the metric runs.

Element	Description
AI Summary	Auto-generated plain-language description of the metric’s purpose, data context, and current health

Results

The Results section shows the most recent alert and anomaly details.

Element	Description
Alert name and severity	The active alert with its priority (e.g., Critical 100%)
Issue began	How long ago the current issue started
Severity bar	A progress bar visualizing how far the score has deviated from baseline
First Alert Seen	Date the first alert was triggered for this issue
Last Alert Seen	Timestamp of the most recent alert
Number of Alerts	Total alert count with severity breakdown badges
Impact	Number of records affected
Anomaly Distribution chart	Plots Current vs Baseline invalid record counts. Shows Outliers % (how far current exceeds baseline) and Drift (net change from baseline)
AI insights	Prizm AI interpretation of the anomaly — summarizes whether the pattern is stable, spiking, or recurring and recommends action

Sample Anomalies

Below the Results section, the Sample Anomalies table shows individual records that triggered alerts in the most recent run.

Column	Description
Date Time	Timestamp when the anomalous record was detected
Expected	The threshold condition (e.g., `> 0` valid records)
Actual	The observed invalid record count
Alert	The alert message generated for that run
Priority	Severity of the alert (Low / Medium / High / Critical)

Use the ALL filter button to toggle between all runs or a specific time range. The search, filter, and export controls in the table header let you drill into specific anomalies.

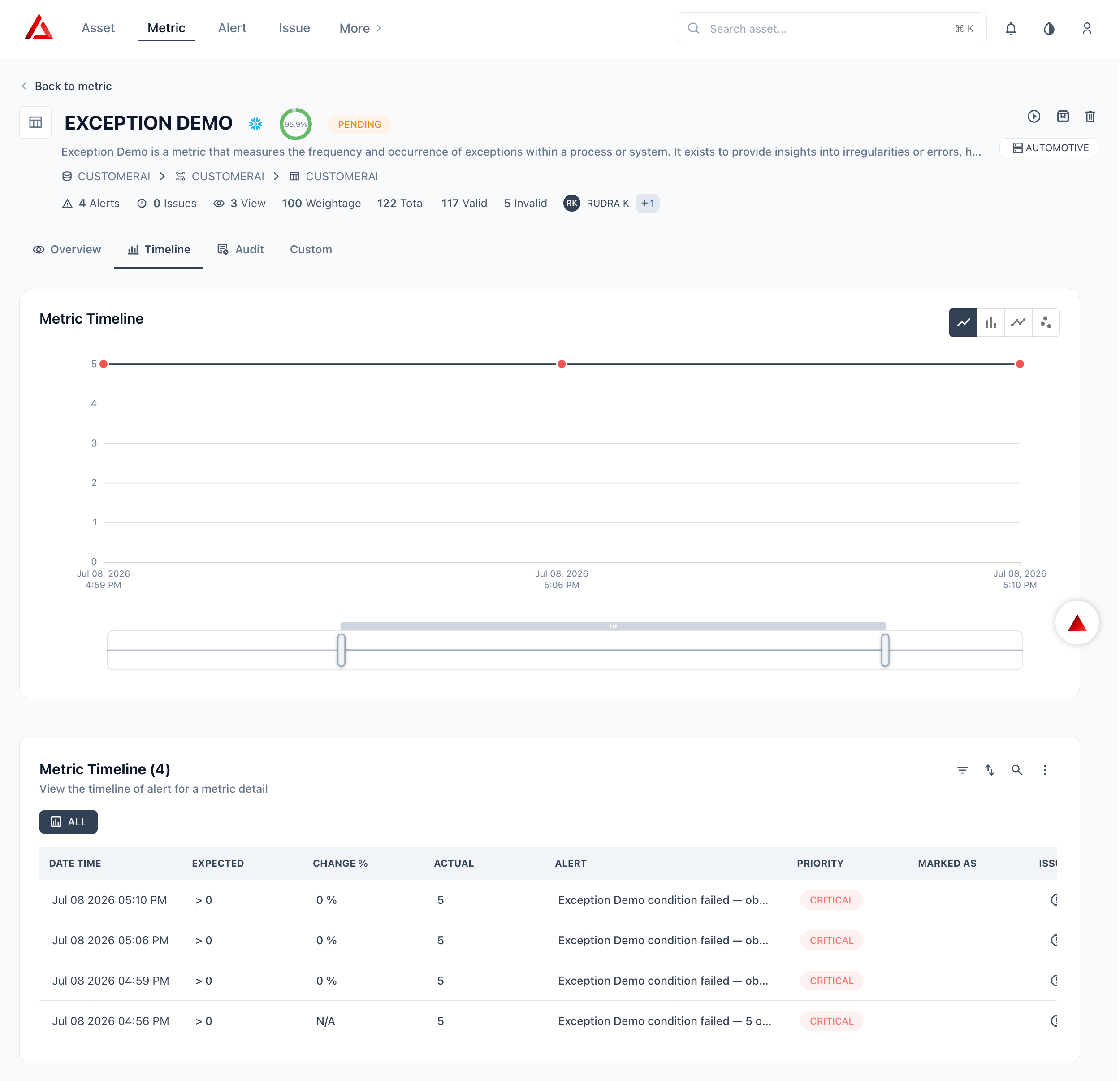

The Timeline tab shows the Metric Timeline chart — a historical view of invalid record counts over time.

Control	Description
Chart type buttons	Switch between line chart, bar chart, trend line, and scatter plot views
X-axis	Run timestamps
Y-axis	Invalid record count per run
Range selector	A mini-chart at the bottom lets you zoom into a specific time window

Use the Timeline to identify when invalid counts started rising, spot recurring patterns, and compare current behavior against historical baseline.

The Audit tab displays a full change log for the metric — every create, update, configuration change, and manual run is recorded with the user who made the change and a timestamp.

Column	Description
Date / Time	When the action occurred
User	Who performed the action
Action	The type of change — Created, Updated, Configuration changed, Manually run
Details	A summary of what was changed (e.g., threshold value updated, rule added)

Use the Audit log to trace when a rule was modified, who changed the threshold, or when the metric was first activated.
