What Prizm Collects from Databricks

Prizm runs the following platform jobs against each Databricks connector. Each job has a defined type, execution flow, and purpose. Select a job below to see the details.

Property	Value
Type	CONTEXT
Execution	Runs immediately after source is configured — first job in the pipeline

What this job does: Extracts catalogs, schemas, and top-level structural metadata from the Databricks Unity Catalog. This is the foundation job — all subsequent jobs depend on it completing successfully. Without a successful TECHNICAL run, no other job can start.

Object	Fields Collected	Databricks Source
Catalog	name, owner, comment, metastore_id, created_at, updated_at	`GET /api/2.1/unity-catalog/catalogs`
Schema	schema_name, catalog_name, schema_owner, comment, created, last_altered	`<catalog>.information_schema.schemata`
Table	table_name, table_type, schema_name, catalog_name, table_owner, comment, created, last_altered, data_source_format, storage_path	`<catalog>.information_schema.tables`
View	Same as Table + view_definition	`<catalog>.information_schema.views`
Column	column_name, data_type, ordinal_position, is_nullable, column_default, comment, partition_index, mask_function_name	`<catalog>.information_schema.columns`

Prizm catalogs Managed Tables, External Tables, and Views from Unity Catalog. Delta Live Tables and Jobs/Pipelines are discoverable when the Pipeline asset type is enabled in the connector settings.

Property	Value
Type	CONTEXT / TRUST
Execution	Starts after TECHNICAL completes

What this job does: Extracts volume, freshness, and schema change signals for all in-scope table assets from Databricks metadata. Serves a dual purpose — it feeds the Prizm catalog (CONTEXT) and the alerting and anomaly detection pipeline (TRUST). It is the source of all time-series observability signals in Prizm and the upstream dependency for most parallel jobs.

Signal	Source	Description
Volume	`information_schema.tables.row_count`	Row count trend; anomaly alerts on drops/spikes
Freshness (Managed Table)	`DESCRIBE HISTORY <table> LIMIT 1`	Latest Delta commit timestamp — captures data writes, not just DDL
Freshness (External Table)	`DESCRIBE DETAIL <table>` → `lastModified`	Last modification timestamp from the external storage layer
Schema Change	`information_schema.tables.last_altered`	Column additions, renames, type changes, removals

Anomaly detection uses adaptive forecasting models (EWMA, AutoReg, Prophet, SARIMAX) selected automatically based on each metric’s historical pattern. Thresholds are recalculated after every run. A minimum of 5 historical values is required before alerts begin firing.

Property	Value
Type	CONTEXT
Execution	Runs in parallel after OPERATIONAL completes

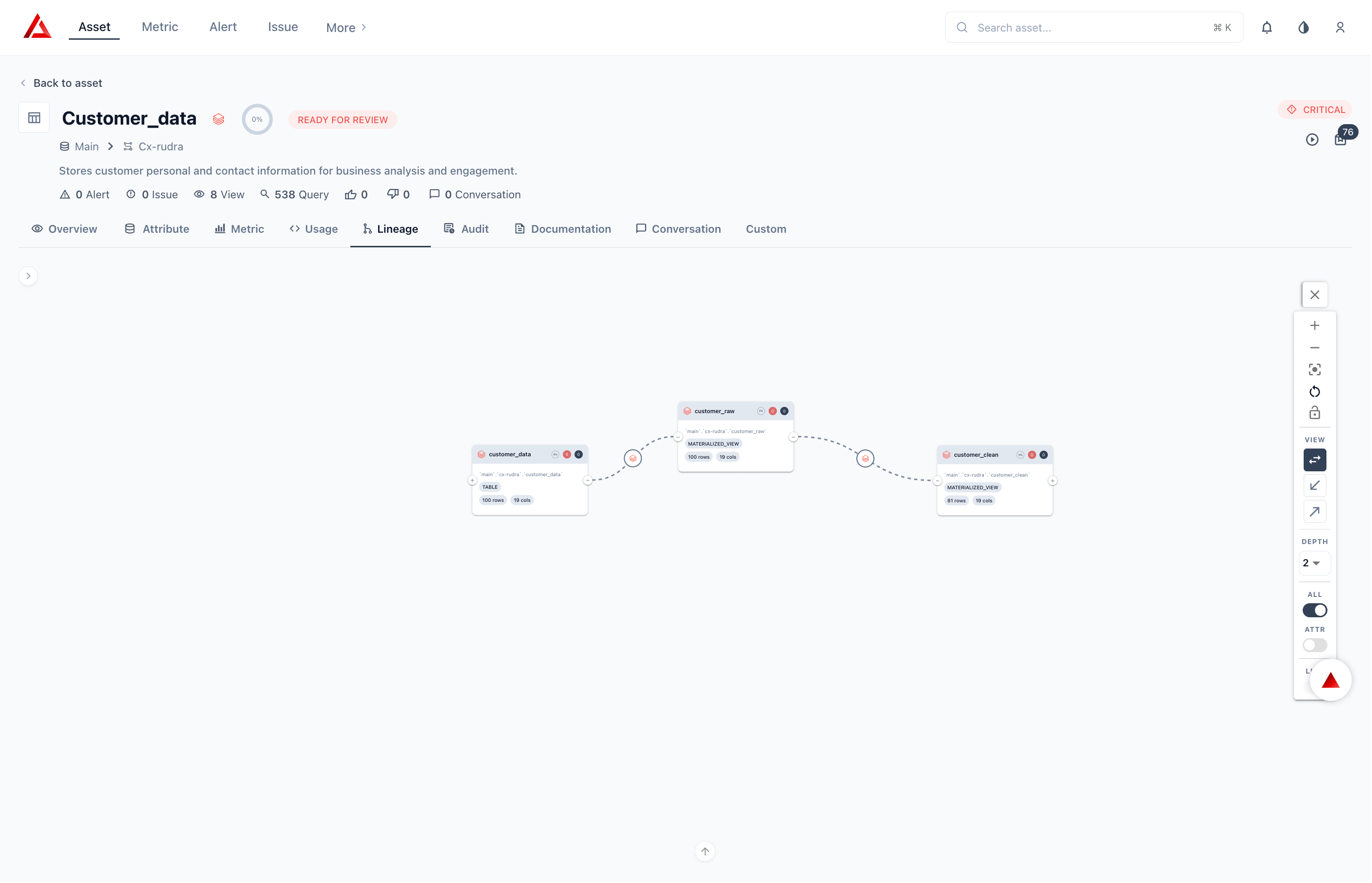

What this job does: Extracts table-level and column-level lineage from Databricks Unity Catalog system tables. Lineage extraction is event-driven — triggered only when a DDL change is detected on an asset (i.e., when LAST_ALTERED changes), keeping extraction efficient with no redundant per-hour runs.

Direction	Source Table	Fields
Table-level lineage	`system.access.table_lineage`	source_table_full_name, target_table_full_name, dependency_type (DIRECT / TRANSITIVE), event_time
Column-level lineage	`system.access.column_lineage`	source_table_full_name, source_column_name, target_table_full_name, target_column_name, dependency_type

Direction	What Prizm Shows
Upstream	Tables and views this asset reads from
Downstream	Tables, views, and pipelines that depend on this asset

Access to system.access.table_lineage and system.access.column_lineage requires SELECT grants on those system tables. These tables are populated by Unity Catalog’s built-in lineage tracking — no additional Databricks configuration is required beyond the permission grant.

Property	Value
Type	CONTEXT
Execution	Runs in parallel after OPERATIONAL completes

What this job does: Extracts warehouse usage, compute costs, and query statistics for the previous 24 hours. Powers the Usage and Performance views in the Prizm asset detail page. This job is disabled by default and must be explicitly enabled in the connector settings. Requires SELECT on system.query.history and system.billing.usage.

Category	Metrics	Source
Query Performance	Execution time, bytes read, bytes written, result cache hit, Photon time, spill to disk, rows read/written	`system.query.history`
Warehouse Utilization	Total queries per warehouse, unique users, total execution hours, cache hit rate	`system.query.history`
Billing & Cost	Compute cost per query/job, storage cost per table, cost per domain, cost per user/role, cost per pipeline	`system.billing.usage`

The Performance job is disabled by default and must be explicitly enabled per connector instance. Prizm retains time-series observability data, quality score history, and query usage history for a default window of 90 days.

Property	Value
Type	CONTEXT
Execution	Runs in parallel after OPERATIONAL completes

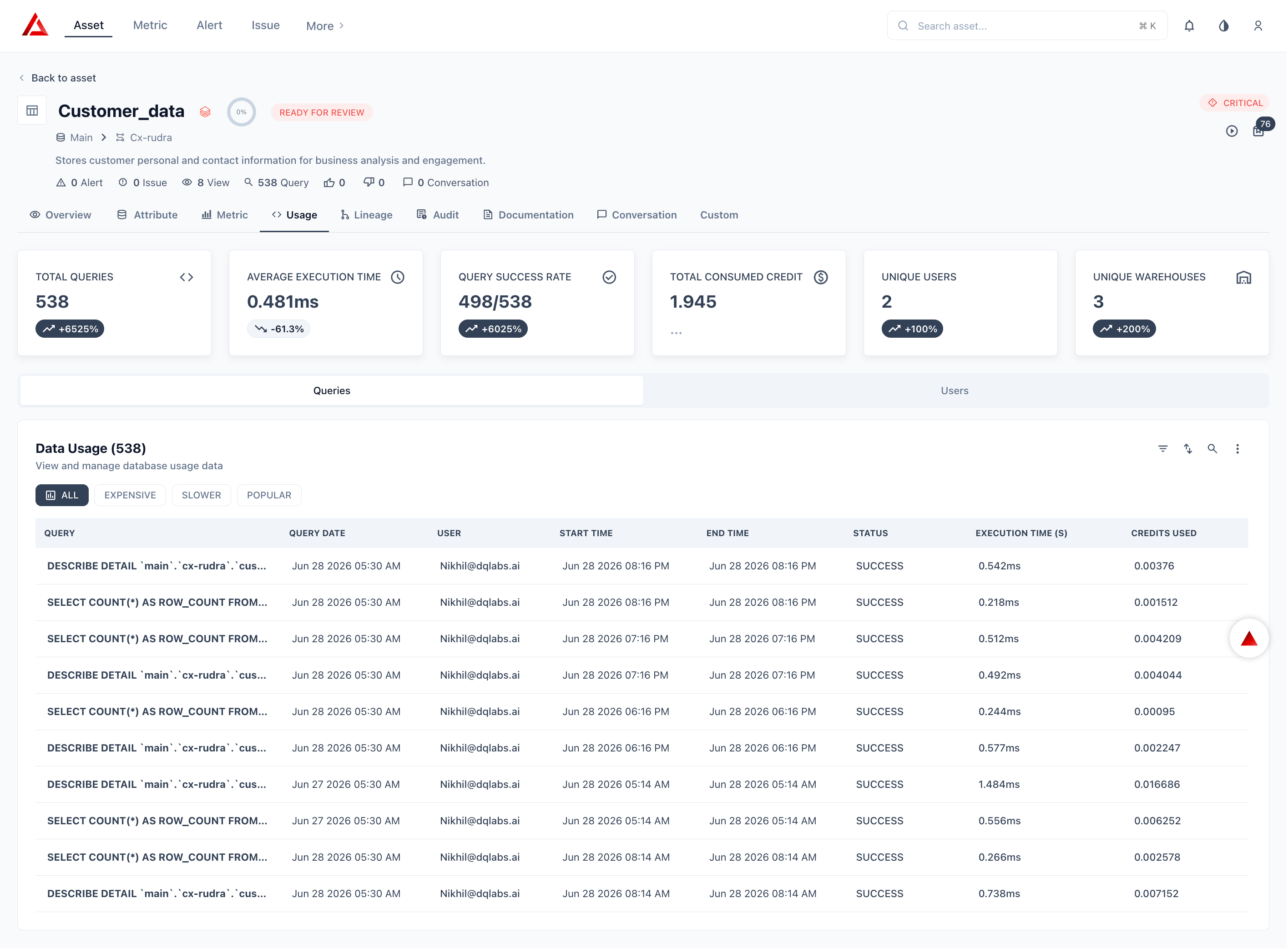

What this job does: Extracts summarized usage information and generates usage-based criticality inputs using 7 days of activity. Analyses how frequently each asset is queried, by whom, and with what patterns — then feeds those signals into the CRITICALITY RECOMMENDATION job. Assets with high query volume or many unique users are more likely to be recommended as critical.

What It Produces	Description
Usage frequency	Number of queries per asset over the past 7 days
Unique user count	Number of distinct users who accessed each asset
Access patterns	Read vs write activity, peak usage windows
Criticality inputs	Usage-based signals consumed by the CRITICALITY RECOMMENDATION job

Property	Value
Type	CONTEXT
Execution	Runs in parallel after OPERATIONAL completes

What this job does: Extracts governance metadata including tags and business metadata. Keeps Prizm’s governance layer in sync with classifications, ownership, and tagging applied directly in Databricks Unity Catalog.

Object	Fields Collected	Databricks Source
Tags (table-level)	tag_name, tag_value, catalog_name, schema_name, table_name	`system.information_schema.table_tags`
Tags (column-level)	tag_name, tag_value, table_name, column_name	`system.information_schema.column_tags`
Stored Procedure	routine_name, routine_type, return_type, routine_definition, created, last_altered	`<catalog>.information_schema.routines`
Business metadata	Owner, description, classification fields	`information_schema` object properties

Property	Value
Type	CONTEXT
Execution	Runs in parallel after OPERATIONAL completes

What this job does: Calculates and recommends criticality scores for assets and attributes. Criticality determines how much observability coverage an asset receives — higher criticality assets get more frequent monitoring, more structural metrics, and tighter alert thresholds. The output is a recommended criticality level (LOW, MEDIUM, HIGH, CRITICAL) per asset, which users can accept or override.

Input Signal	Source Job
Usage frequency and user count	USAGE SUMMARY
Downstream dependency count	LINEAGE
Business metadata completeness	GOVERNANCE
Asset type and schema position	TECHNICAL / OPERATIONAL

Property	Value
Type	TRUST
Execution	Runs in parallel after OPERATIONAL completes

What this job does: Computes non-metadata metrics such as freshness and volume for non-table assets by running direct queries against Databricks. The OPERATIONAL job derives signals from metadata — but for assets like views and external tables, metadata alone is not sufficient. COMPUTE METRIC fills this gap by executing lightweight queries to obtain accurate signals.

Asset Type	What Is Computed	How
View	Row count, freshness derived from upstream	Direct `SELECT COUNT(*)` and upstream lineage lookup
External Table	Row count, last modified	`DESCRIBE DETAIL` → `lastModified`
Materialized View	Row count, refresh timestamp	Query against materialized view metadata

Property	Value
Type	TRUST
Execution	Runs in parallel after OPERATIONAL; PROFILE job depends on its output

What this job does: Recommends profiling schedules and configurations based on asset scope definitions. Determines which assets should be profiled, at what frequency, and with what sample settings — taking into account criticality level, asset size, and scope configuration. The PROFILE job will not run until this job has produced its output and created the schedules.

Property	Value
Type	TRUST
Execution	Runs in parallel after OPERATIONAL; STRUCTURAL job depends on its output

What this job does: Recommends structural quality metrics (Essential or Advanced) for each attribute. Analyses the column’s data type, profile history, and criticality to determine the appropriate metric set. Essential metrics are always recommended; Advanced metrics are added for columns where deeper analysis is warranted. The STRUCTURAL job executes against this recommendation output.

Property	Value
Type	TRUST
Execution	Triggered after PROFILE RECOMMENDATION completes and schedules are created

What this job does: Executes profiling jobs according to the schedules generated by PROFILE RECOMMENDATION and stores the profiling results. Can also be triggered manually from the asset page at any time.Table-level metrics:

Metric	Description
Row Count	Total rows at profile time (from `information_schema.tables.row_count` with `COUNT(*)` fallback)
Duplicate Row Count	Rows that are exact duplicates of another row
Completeness Score	% of columns with non-null values across all rows

Column-level metrics:

Metric	Applicable Types	Description
Null Rate	All	% of null values
Distinct Count	All	Number of unique non-null values (cardinality)
Uniqueness Rate	All	% of values appearing exactly once
Min / Max	Numeric, Date/Timestamp	Observed range of values
Mean	Numeric	Arithmetic mean
Standard Deviation	Numeric	Statistical spread
Median	Numeric	50th percentile value
Top N Values	String, Boolean	Most frequent values and their counts
Pattern Conformance	String	% matching an expected regex format
Type Conformance	String	% of values castable to the declared data type

Trigger conditions:

Trigger	Conditions
Scheduled run	Active schedule, `next_run_at` is due, source is valid and active
Manual run	User triggers Profile from the asset UI (TABLE or VIEW)
Criticality gating	Only attributes eligible for the asset’s criticality level are profiled
Skip (incremental)	Skipped if the table row count is unchanged since the last run, or if the existing profile is newer than the table’s `last_altered` timestamp

Property	Value
Type	TRUST
Execution	Triggered after STRUCTURAL RECOMMENDATION completes and metrics are created

What this job does: Executes structural quality metrics according to the schedules and configurations generated by STRUCTURAL RECOMMENDATION. Computes distribution, frequency, pattern, and statistics metrics at the attribute level for all in-scope columns.

Metric Category	What Is Computed
Distribution	Null count, empty, space, distinct, repeating, character composition, leading/trailing/inner space
Frequency	Enum (value histogram), min/max value, value range, min/max length, length distribution
Pattern	Short pattern, long pattern, user-defined regular expressions
Statistics	Mean, median, mode, standard deviation, sum, Q1, Q3, range, skewness, kurtosis, variance, margin of error

Property	Value
Type	CONTEXT
Execution	Independent job; no upstream dependency

What this job does: Recommends asset definitions, descriptions, intended audience, semantic context, and execution scope settings (Incremental, Sampling with Filter, or None). Uses AI to analyse the asset’s name, column names, sample values, and usage patterns to generate human-readable context that data stewards can review and accept.

What It Generates	Description
Description	AI-generated plain-language description of what the asset contains and its purpose
Who should use	Recommended audience — data analysts, engineers, business users, etc.
Semantic context	Suggested domain, product, application, and tag classifications
Execution scope	Recommended profiling mode — Incremental (only changed rows), Sampling with Filter, or None

Property	Value
Type	TRUST
Execution	Independent job; no upstream dependency

What this job does: Recommends business metrics for assets based on column names, data types, profiling results, and industry patterns. Suggests quality checks that go beyond structural profiling — for example, a not-null check on a primary key column, or a range check on a revenue column. Recommendations appear in the Prizm UI for review before any metric is created.

Property	Value
Type	TRUST
Execution	Independent job; no upstream dependency

What this job does: Recommends metric descriptions, purposes, and rationale for existing metrics. For each metric already defined on an asset, this job generates a human-readable explanation of what the metric checks, why it matters, and what a failure would indicate. These descriptions appear in the Prizm metric detail panel and help data stewards understand the intent behind auto-generated checks.

Property	Value
Type	CONTEXT
Execution	Independent job; no upstream dependency

What this job does: Maps assets and attributes to existing glossary terms or generates new business terms where required. Analyses column names, descriptions, and sample values to find matching terms in the Prizm business glossary. Powers the Semantic layer in Prizm — ensuring that columns are aligned to approved business vocabulary.

Output	Description
Term mapping	Links a column to an existing glossary term (e.g. `customer_id` → “Customer Identifier”)
Term proposal	Suggests a new glossary term where no existing match is found
Confidence score	Indicates how confident the AI is in the mapping recommendation

Property	Value
Type	TRUST
Execution	Independent job; no upstream dependency

What this job does: Clusters and groups related alerts to reduce duplication and improve root-cause analysis. When multiple alerts fire simultaneously on the same asset or related assets — for example, a freshness alert and a volume alert on the same table — this job groups them into a single alert cluster. Reduces alert fatigue by surfacing correlated failures together rather than as separate notifications.

Property	Value
Type	TRUST
Execution	Independent job; no upstream dependency

What this job does: Generates and refreshes daily asset trend data by aggregating DQ scores, alerts, issues, and asset metadata. Powers the score history charts on the asset detail page — the time-series view of how an asset’s quality score has evolved over time. Also feeds domain-level and portfolio-level trend views in the Prizm Scorecard and Analytics pages.

Property	Value
Type	PLATFORM
Execution	Independent job; no upstream dependency

What this job does: Cleans and maintains the Prizm repository by removing obsolete data. Deletes stale metric history, expired alert records, orphaned job artifacts, and data from deleted or disconnected sources. Runs on a configurable schedule to keep the Prizm database within the configured retention window. Does not affect live assets or active metric data within the retention period.

Property	Value
Type	CONTEXT / TRUST
Execution	Runs on a 15-minute polling interval when Enable pipelines and jobs is toggled on in the connector’s Advanced Configuration

What this job does: Discovers and monitors all in-scope Databricks Job, Workflow, Delta Live Table (DLT), and Lakeflow Pipeline objects. On first run it backfills run history for the configured lookback window (default 7 days). On subsequent runs it incrementally ingests new run events and flow-level telemetry, computes observability metrics, and fires alerts on failures, missed schedules, and data quality expectation violations.Pipeline catalog fields (sourced from system.lakeflow.job_runs and the Databricks Jobs REST API):

Field	Pipeline Types	Description
`workspace_id`	All	Databricks workspace identifier
`pipeline_id` / `job_id`	All	Unique identifier for the Job or DLT pipeline
`pipeline_name` / `job_name`	All	Display name
`creator_user_name`	Jobs, DLT, Procedures, Functions	Identity that created the pipeline
`run_as_user_name`	Jobs, Procedures	Service principal or user the pipeline runs as
`catalog_name`	All	Unity Catalog catalog the pipeline operates on
`schema_name`	DLT, Procedures, Functions	Target schema
`start_time`	Jobs, DLT, Tasks	Run start timestamp
`end_time`	Jobs, DLT, Tasks	Run end timestamp
`execution_duration`	Jobs, DLT, Tasks	Total elapsed time in milliseconds
`result_state`	Jobs, DLT, Tasks	Final run state: `SUCCESS`, `FAILED`, `CANCELLED`, `SKIPPED`, `EXCLUDED`, `STOPPED`, `IDLE`

Flow-level telemetry fields (sourced from DLT event log — flow_progress events):

Field	Description
`table_name` / `flow_name`	Name of the DLT flow (streaming table or materialized view)
`update_id`	DLT pipeline update identifier
`final_status`	Flow-level outcome (`COMPLETED`, `FAILED`, `CANCELLED`, etc.)
`total_output_records`	Rows written to the target in this update
`total_upserted_records`	Rows upserted (merge operations)
`total_deleted_records`	Rows deleted
`total_expectation_dropped_records`	Rows dropped due to DLT `EXPECT` constraint violations
`duration_seconds`	Flow-level execution time in seconds

DLT expectation (data quality) fields (sourced from DLT event log — flow_progress.data_quality):

Field	Description
`expectation_name`	Name of the `EXPECT` constraint
`dataset`	DLT table the expectation applies to
`passed_records`	Records that satisfied the expectation
`failed_records`	Records that violated the expectation
`dropped_records`	Records dropped when the expectation’s action is `DROP`

Pipeline collection requires Enable pipelines and jobs to be turned on in the connector’s Advanced Configuration. The lookback window (default 7 days) controls how far back Prizm reaches on the initial sync. Subsequent runs are incremental.

What You See in Prizm

Once Prizm completes its initial catalog and observability runs, every Databricks asset gets a unified detail page in the catalog. The sections below describe what each asset type shows.

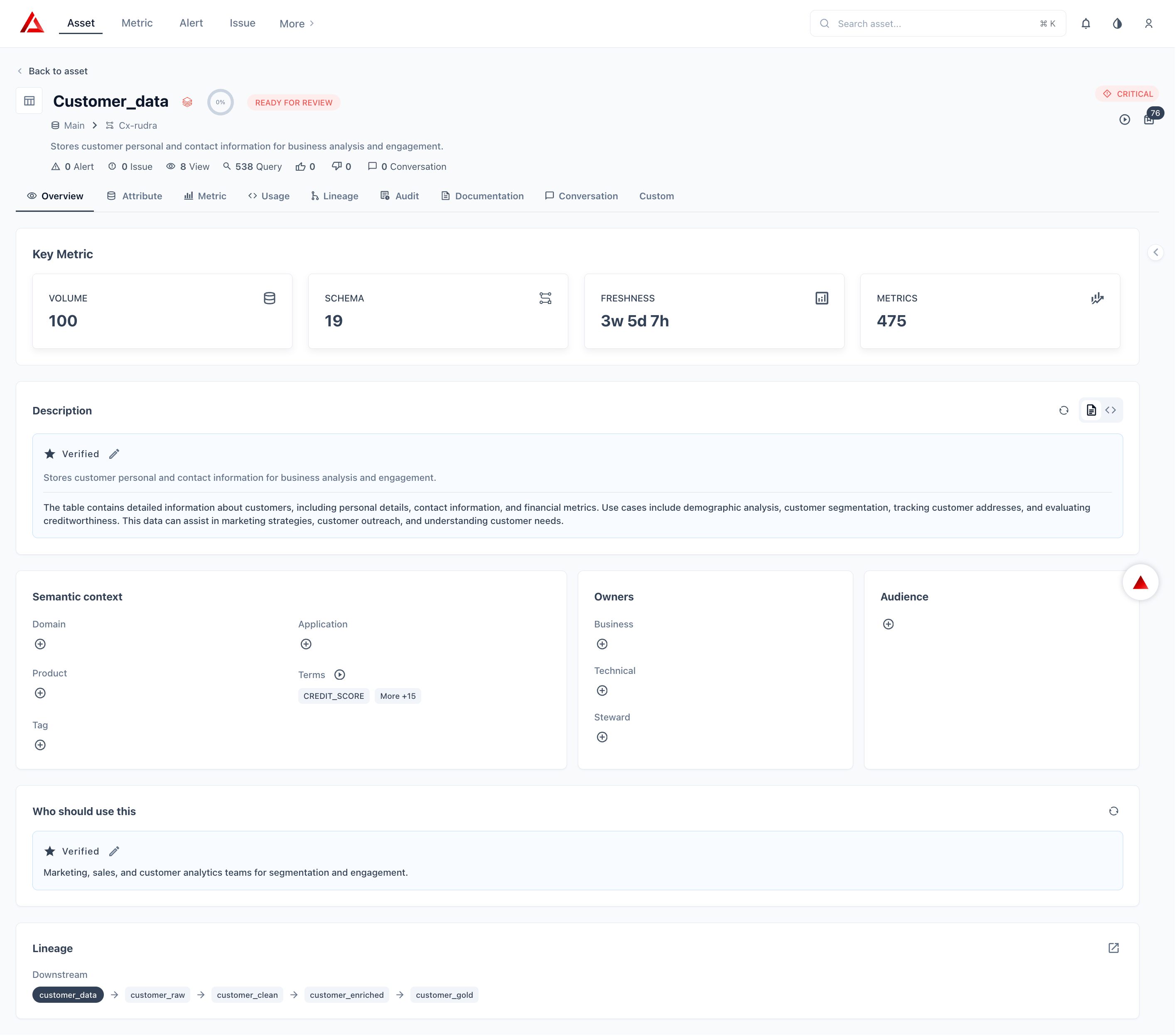

Table & View Asset Pages

Tables and views cataloged from Databricks Unity Catalog each get a dedicated asset detail page with the following tabs.

Section	What Prizm Shows
Quality Score	Overall data quality percentage computed across all active metrics
Status	Review state (e.g., READY FOR REVIEW) and criticality badge
Key Metrics	VOLUME (row count), SCHEMA (column count), FRESHNESS (time since last update), METRICS (total quality metrics defined)
Description	AI-generated or manually verified description of the asset
Semantic Context	Domain, Application, Product, Tag, and Terms classifications
Owners	Business owner, Technical owner, and Steward contacts
Audience	Intended audience and recommended use cases
Who should use this	AI-generated guidance on which teams or roles should consume this asset

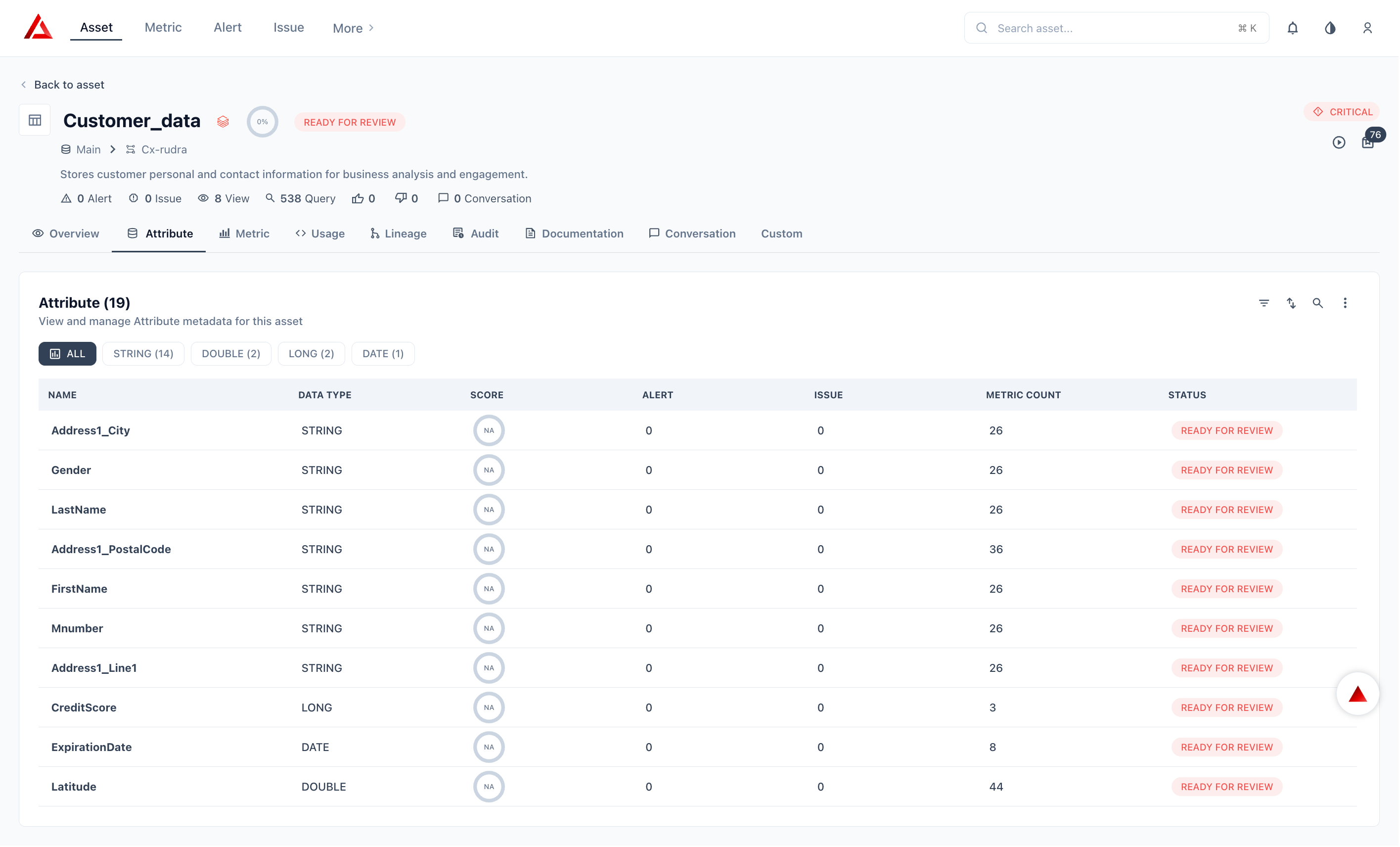

The Attribute tab lists every column Prizm has cataloged with columns: NAME, DATA TYPE, SCORE, ALERT, ISSUE, METRIC COUNT, STATUS.

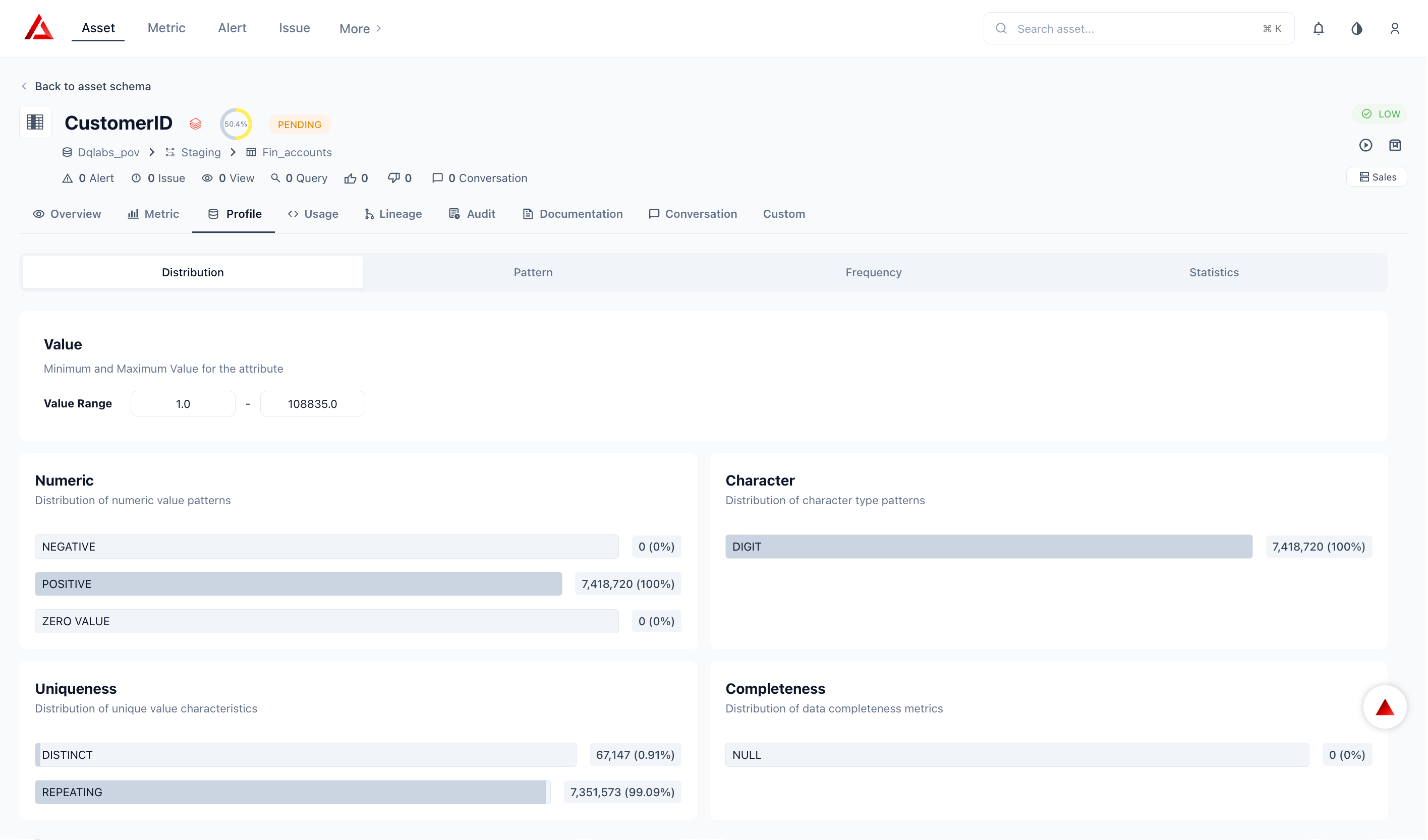

Clicking any attribute opens its column profile with views across completeness, uniqueness, character distribution, patterns, and frequency.

Profile Section	What Prizm Shows
Completeness	Count and % of NULL, EMPTY, SPACE, and NON-EMPTY values
Uniqueness	Count and % of DISTINCT vs REPEATING values
Character	Distribution across DIGIT, ALPHABET, ALPHA NUMERIC, SPECIAL CHARACTER
Length	Minimum and maximum character length
Pattern	Top regex patterns detected across values
Frequency	Most and least frequent individual values

For the full breakdown of profiling views, metric types, and how to interpret profile results, see the Data Profiling section.

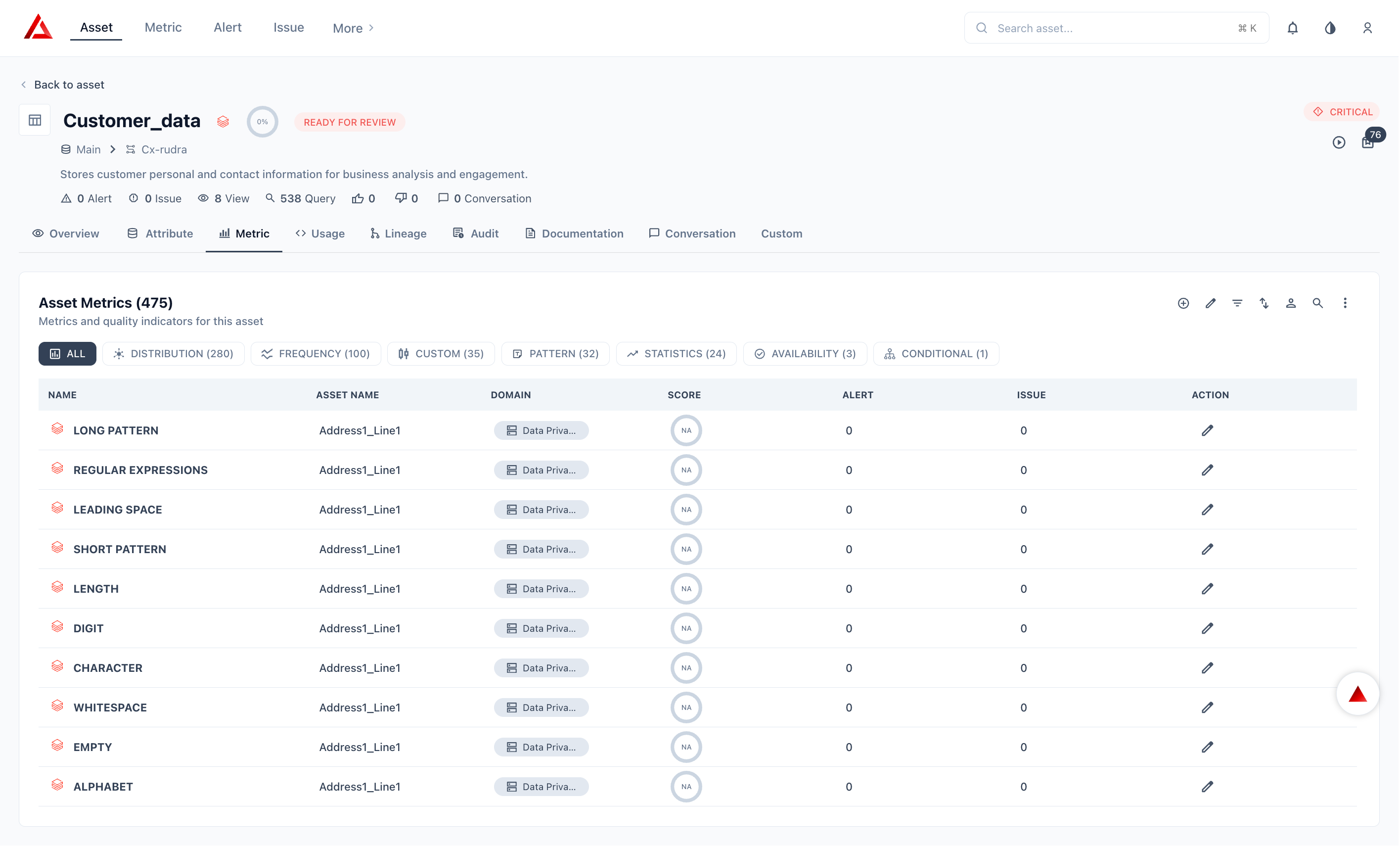

The Metric tab lists all quality metrics defined on the asset. Each row shows the metric name, asset/column name, domain, current score, alert count, issue count, and action controls.

Metrics are filterable by category:

Category	What It Contains
Distribution	Completeness, uniqueness, character, and space metrics (null count, empty, distinct, repeating, whitespace, leading/trailing space, etc.)
Custom	User-defined quality rules, filters, and threshold expressions
Frequency	Value frequency histograms, min/max values, min/max length, value range, and length distribution
Pattern	Short pattern, long pattern, and user-defined regular expression metrics
Statistics	Numeric summary metrics: mean, median, mode, standard deviation, sum, Q1, Q3, range, skewness, kurtosis, variance, margin of error
Availability	Data availability and freshness signals
Conditional	Metrics applying different logic or thresholds based on a column condition

The Usage tab surfaces query history for the asset — who queried it, when, and at what cost. It has two sub-views: Queries and Users. Powered by the PERFORMANCE job (system.query.history).

Queries — filterable by ALL, EXPENSIVE, SLOWER, POPULAR:

Column	What Prizm Shows
Query	The SQL statement executed against this asset
Query Date	Date the query was run
User	User or service principal that ran the query
Start Time	Query start timestamp
End Time	Query end timestamp
Status	Query outcome (success, failed, etc.)
Execution Time (s)	Total execution time in seconds
Credits Used	Compute credits consumed by this query

Users — shows distinct users who have queried this asset, their query counts, and execution patterns.

Usage data requires the Performance job to be enabled and the service principal to have SELECT on system.query.history.

The Lineage tab shows upstream sources and downstream consumers as a directed graph. Each node displays the asset name, object type, row count, and column count.

Direction	What Prizm Shows
Upstream	Tables, views, and external sources this asset reads from
Downstream	Tables, views, and pipelines that depend on this asset
Column-level	Which specific columns flow between upstream and downstream assets

Lineage is extracted from system.access.table_lineage (table-level) and system.access.column_lineage (column-level) and is triggered only when a DDL change is detected.

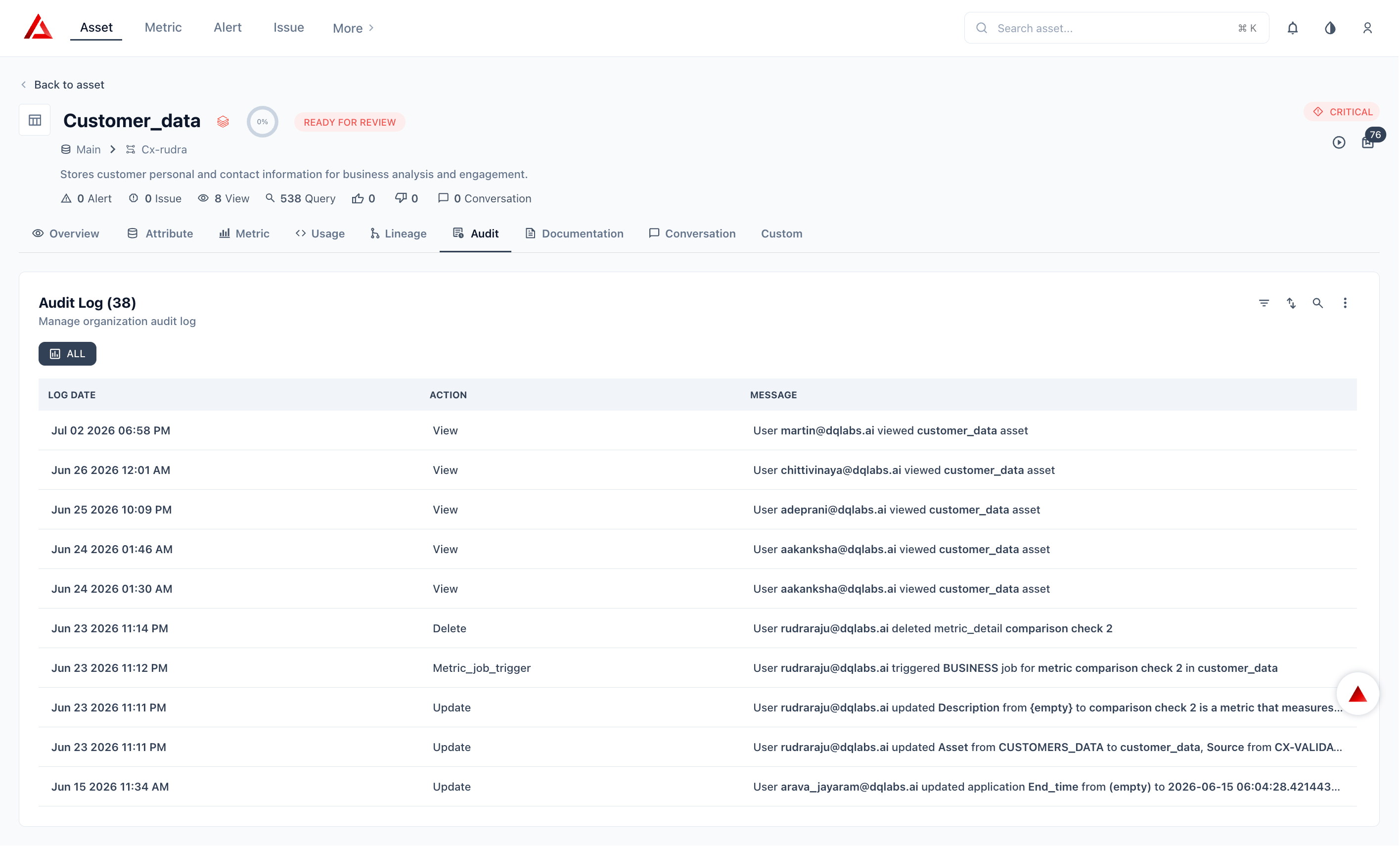

The Audit tab is a tamper-evident log of every action taken on the asset — who changed what, and when. It provides a complete change history for governance, compliance, and incident investigation.

Column	What Prizm Shows
Log Date	Timestamp of the recorded action
Action	Type of change (e.g., metadata update, description edit, owner change, status update)
Message	Human-readable detail of what changed and by whom

The log is filterable by action type. All records are immutable — entries cannot be edited or deleted from the UI.

Pipeline Asset Pages

When Enable pipelines and jobs is turned on, each Databricks Job, Workflow, and Delta Live Table gets its own pipeline asset page in Prizm. The pipeline asset page has a different tab set from table and view assets, reflecting the operational and run-level nature of pipeline observability.

Section	What Prizm Shows
Quality Score	Overall quality percentage across all active pipeline metrics
Status	Review state and criticality badge
Key Metrics	ROWS AFFECTED (rows written per run), SCHEMA (output schema column count), FRESHNESS (time since last successful run), METRICS (active metric count), TOTAL RUNS (total historical runs), FAILURE RATE % (rolling failure rate)
Description	AI-generated or manually verified description of the pipeline
Semantic Context	Domain, Application, Product, Tag, and Terms classifications
Owners	Business owner, Technical owner, and Steward contacts

The Metric tab lists all quality metrics defined on the pipeline asset — including observability metrics such as Execution Status, Freshness, Failure Rate, Rows Affected, and Dropped Records.

Metric	What It Measures
Execution Status	Whether the most recent pipeline run succeeded, failed, or was cancelled
Freshness	Time elapsed since the last successful pipeline completion
Rows Affected	Number of rows written, updated, or deleted by the pipeline run
Failure Rate	Percentage of pipeline runs that have failed over a rolling window
Dropped Records	Records discarded due to DLT `EXPECT` constraint violations
Failed Records	Records that failed validation or processing rules

The Lineage tab renders a directed graph showing the upstream source tables the pipeline reads from and the downstream tables it produces.

Direction	What Prizm Shows
Upstream	Source tables and views the pipeline reads from
Downstream	Output tables and assets produced by the pipeline

Lineage for pipeline assets is extracted from the DLT flow_definition event log and the Databricks Jobs REST API.

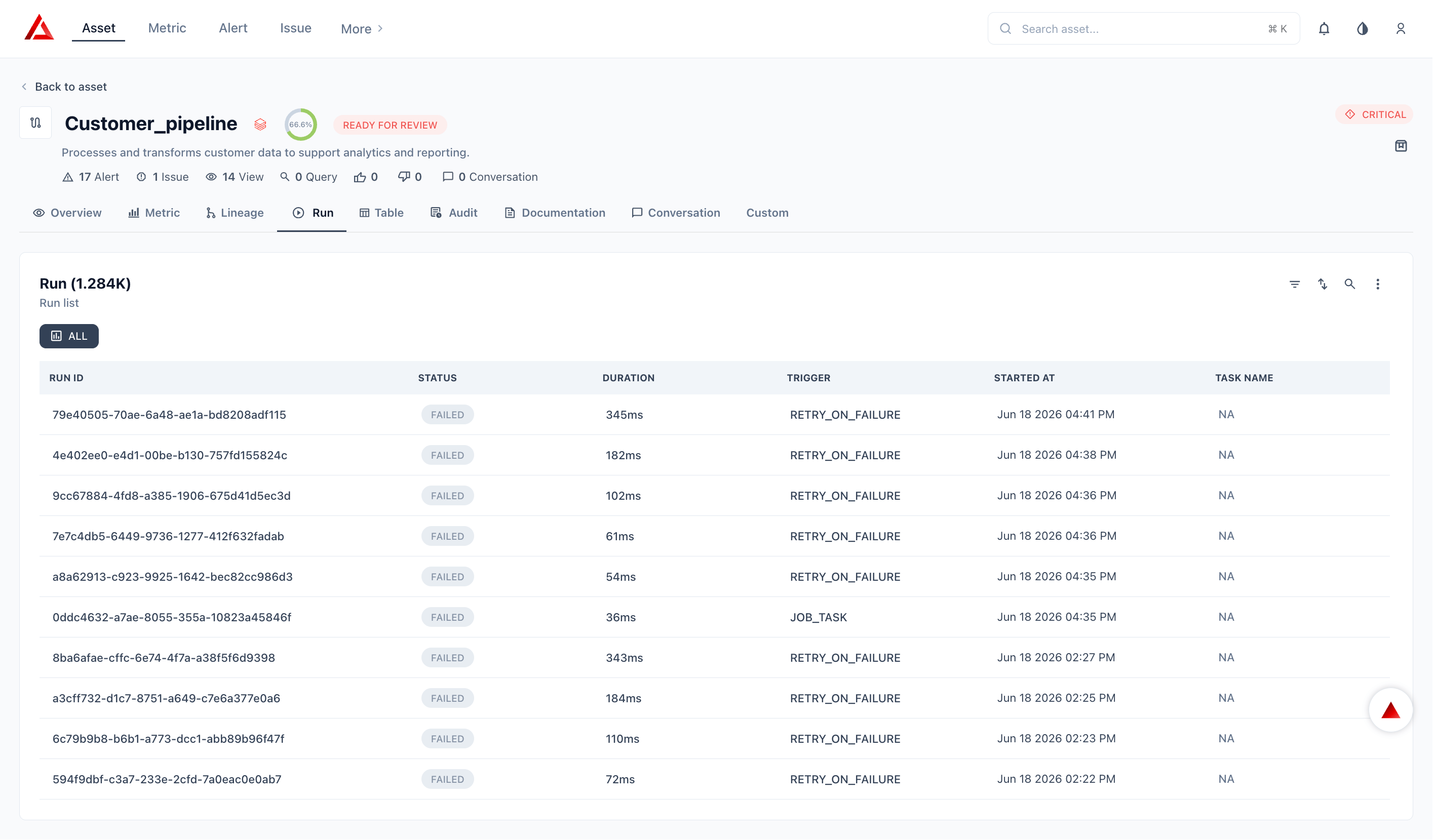

The Run tab shows the full execution history for the pipeline — every run Prizm has ingested within the lookback window, with status, duration, trigger, and environment context.

Column	What Prizm Shows
Run ID	Unique identifier for this pipeline execution
Status	Run outcome: SUCCESS, FAILED, CANCELLED, SKIPPED, RUNNING
Error	Error message or failure reason if the run did not succeed
Duration	Total elapsed time for the run
Trigger	What initiated the run — JOB_TASK, RETRY_ON_FAILURE, MANUAL, SCHEDULED, etc.
Environment	Databricks environment context (workspace, cluster)
Started At	Run start timestamp

Runs are filterable by status. Click any run row to expand the detail view showing task-level breakdown and error logs.

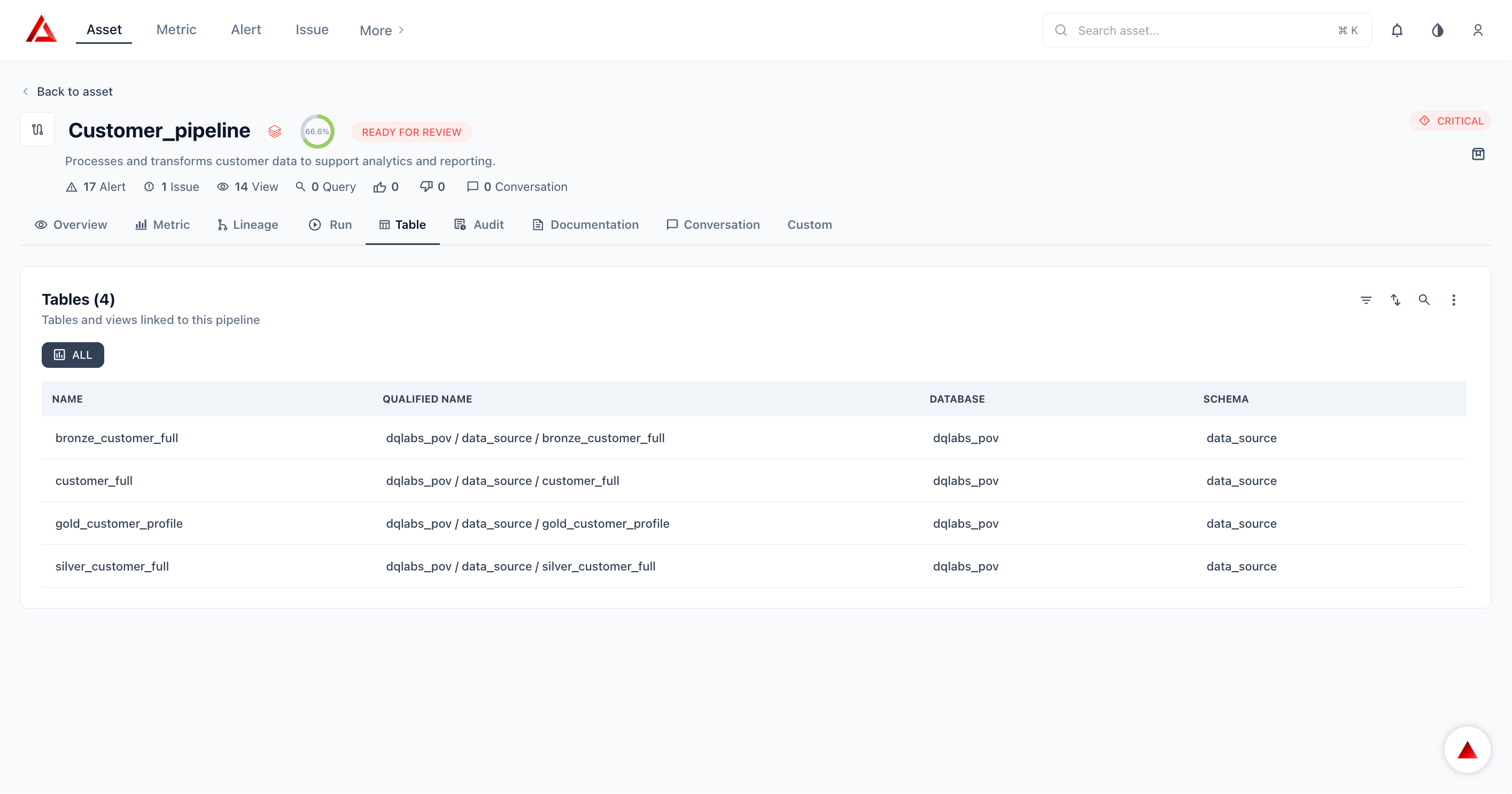

The Table tab lists the data source tables that this pipeline reads from or writes to — providing direct traceability between the pipeline and the warehouse assets it touches.

Column	What Prizm Shows
Name	Fully qualified table name (catalog.schema.table)

Tables listed here are the report data source tables associated with this pipeline run context. This view complements the Lineage tab with a flat list format for quick reference.

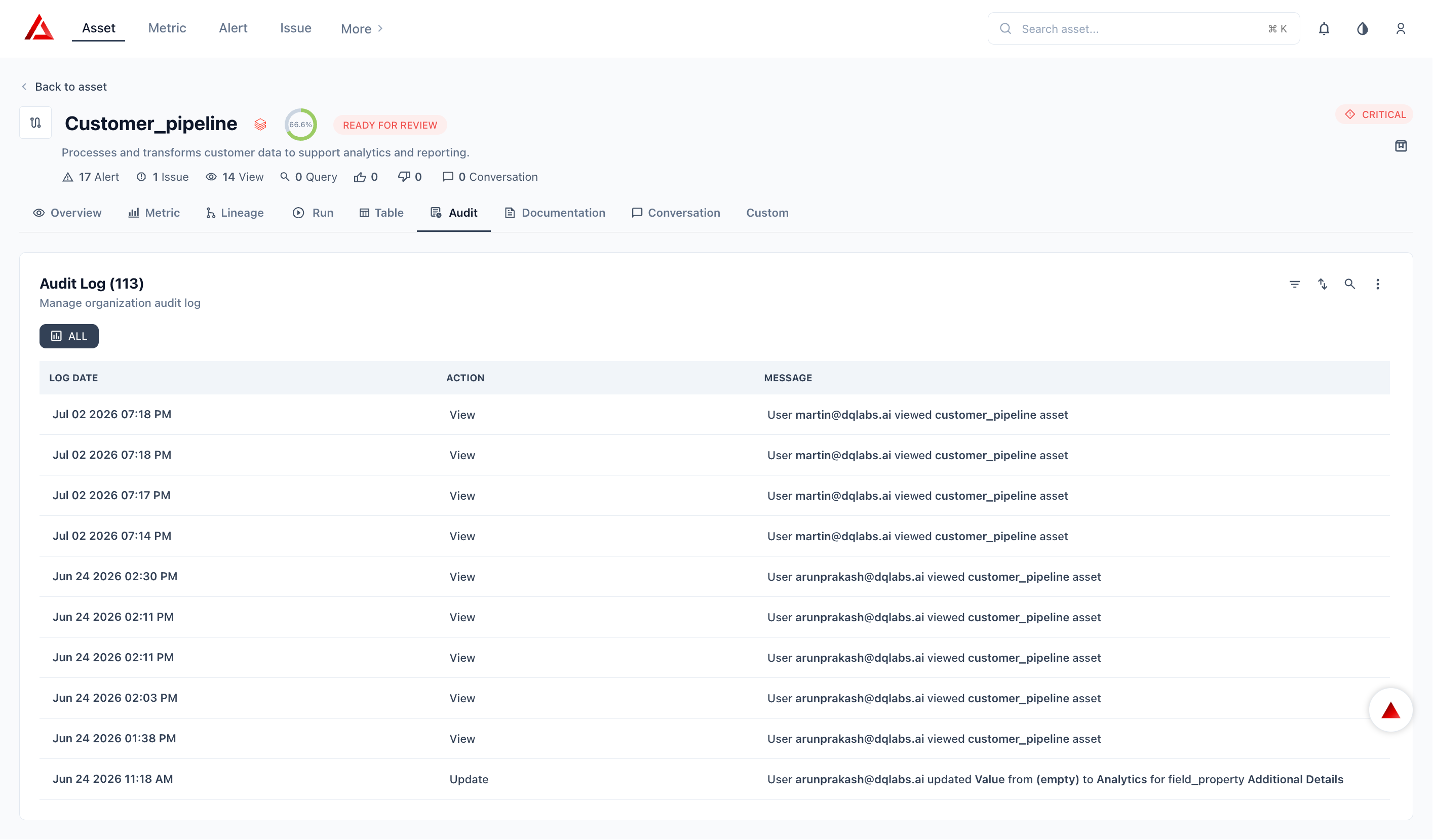

The Audit tab records every metadata change made to the pipeline asset in Prizm — owner updates, description edits, status changes, and configuration modifications.

Column	What Prizm Shows
Log Date	Timestamp of the recorded action
Action	Type of change (metadata update, owner change, status update, etc.)
Message	Human-readable detail of what changed and by whom

All records are immutable — entries cannot be edited or deleted from the UI.

Next Steps

Setup

Connect Databricks to Prizm — prerequisites, authentication, and configuration.

FAQ

Common questions about the Databricks connector.

Get Started

Core Concepts

Platform

Architecture

Data Sources

Integrations

Security & Access Control

Deployment

Help

Settings

MCP

Release Notes

API Reference

What Prizm Collects from Databricks

What You See in Prizm

Table & View Asset Pages

Pipeline Asset Pages

Next Steps

Setup

FAQ

​What You See in Prizm

​Table & View Asset Pages

​Pipeline Asset Pages

​Next Steps

Setup

FAQ

What You See in Prizm

Table & View Asset Pages

Pipeline Asset Pages

Next Steps
